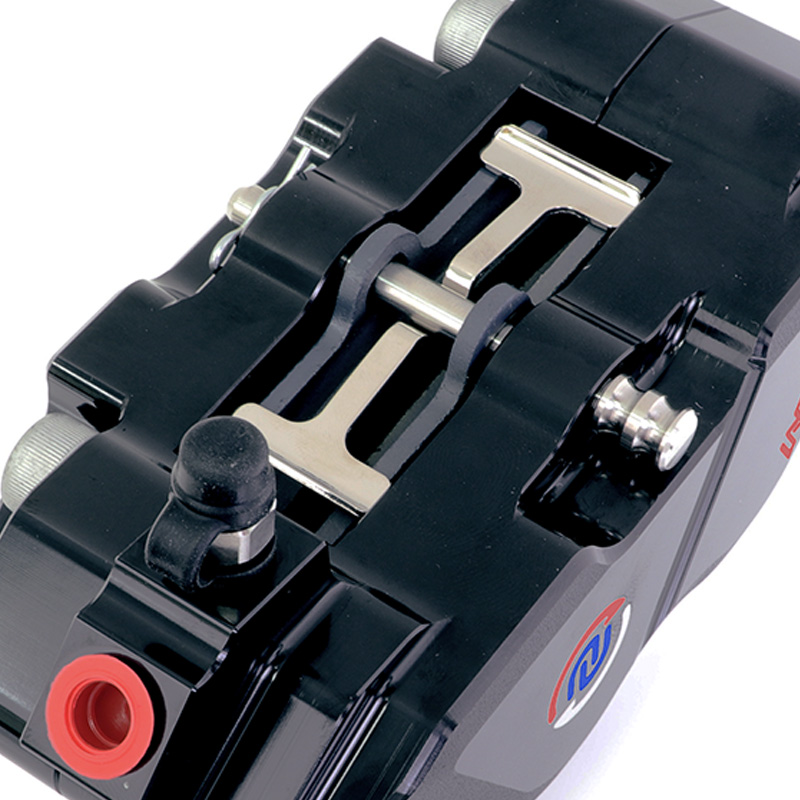

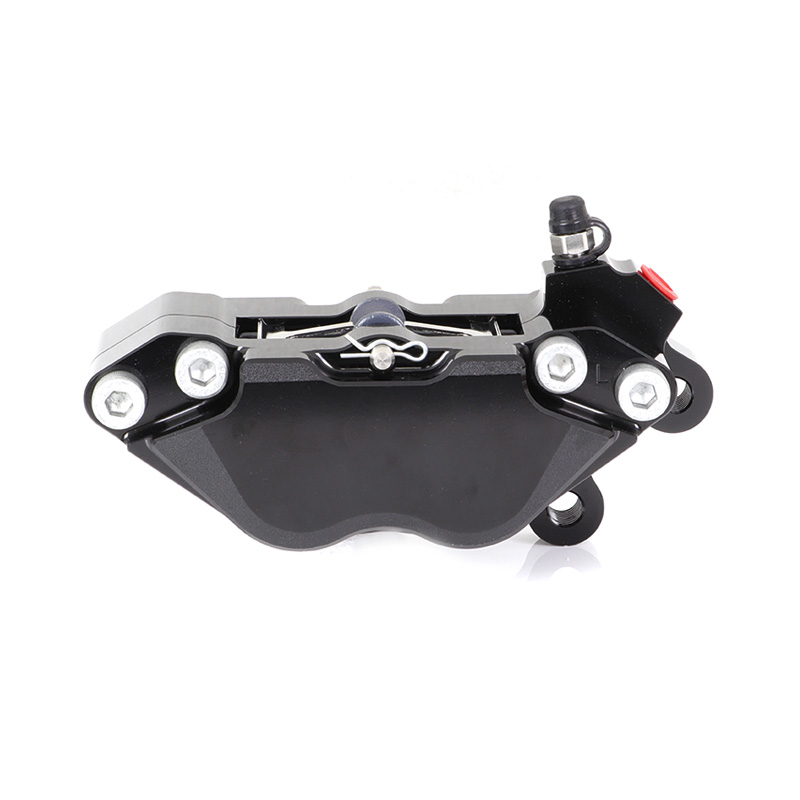

UNIVERSAL N-23 Forged 4 Pot Caliper/ Left
Code: 999D02N23FOL4BK
Scale:

Black

Class:
UNIVERSAL UNIVERSAL
< Domestic Models > < Foreign Models >
FOR ALL MOTOR MODELS FOR ALL MOTOR MODELS

1. Forged Aluminum 6061 T6 with CNC machine precisely.

    Attached special oil passage design and high strength connecting bolt to make brake force performance better.

2. Surface design with big chamfer and sandblasting treatment, CNC machine cutting pattern getting attractive.

3. Bleeder & Brake pad pin with material stainless 304, not easy to get rusty and weather resistance.

4. Piston with aluminum 7075, surface with machine precisely and special hard anodized treatment for longer using without abrasion.

5. Aluminum 7075 piston size 34mm and 30mm attaching to make brake performance curve gradually.

    Center bore 40mm, caliper bolt M10*1.5, banjo bolt M10*1.0.

6. Upgrade Advanced Composite Brake Pad, offer steady braking performance within normal temperature ~400°C; high temperature resistance up to 600~800°C.

    Material qualified for the worldwide environmental regulation, GG
