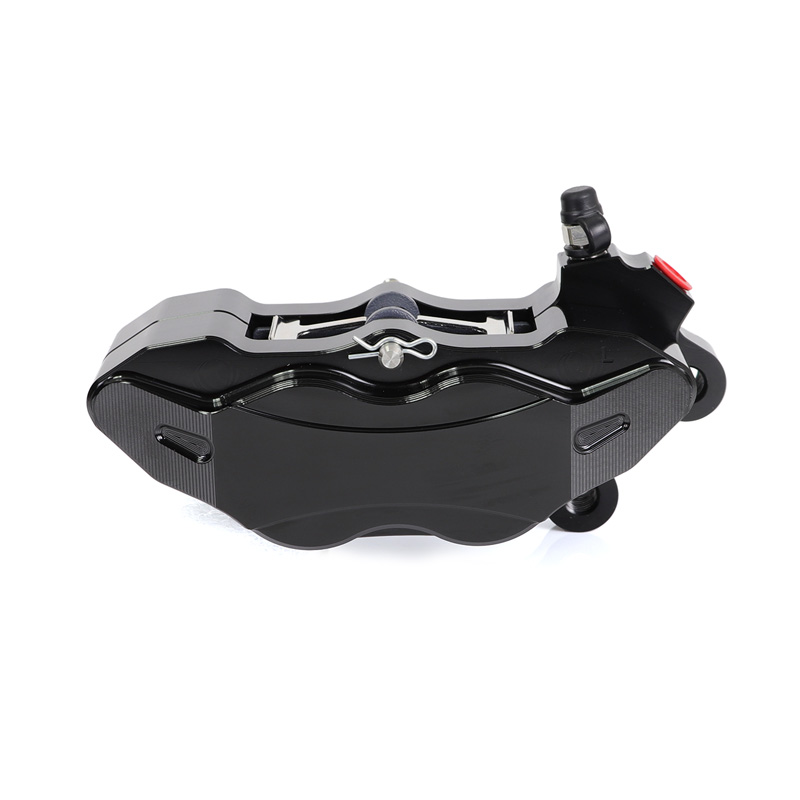

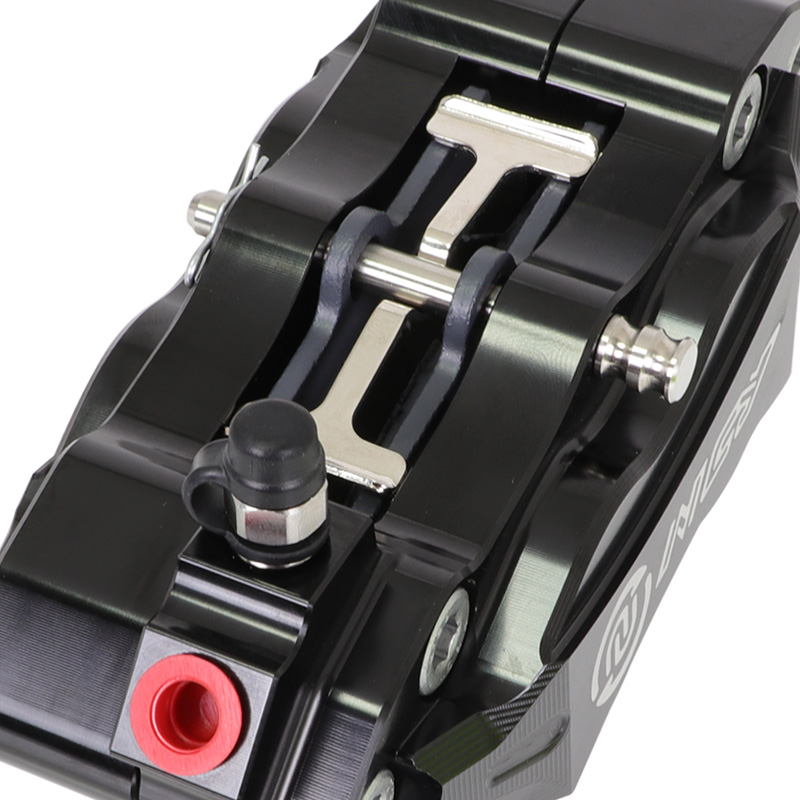

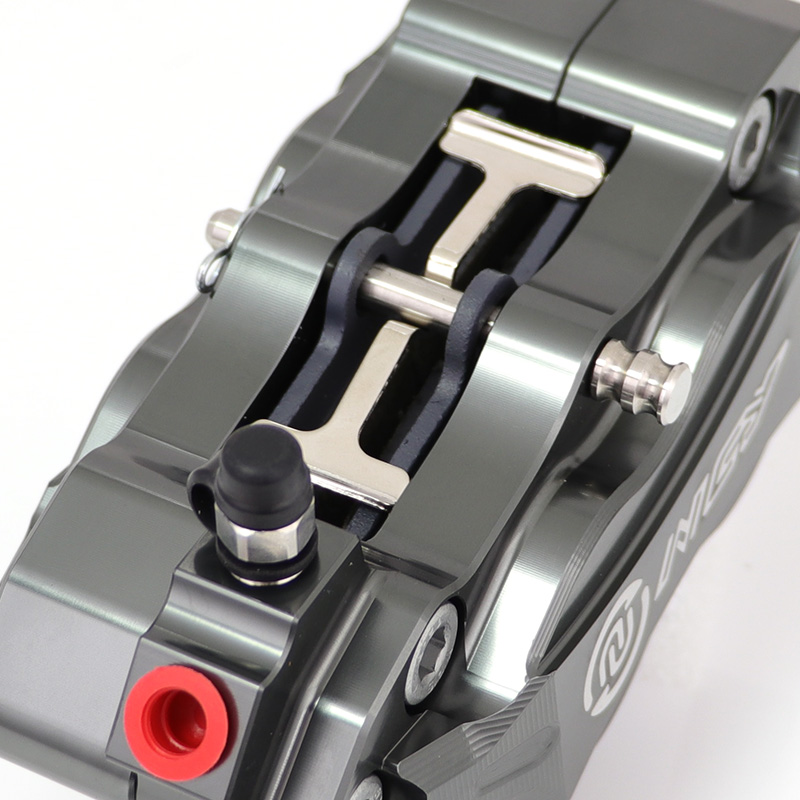

UNIVERSAL N-23 CNC 4 POT CALIPER/ Left
Code: | 999D02N23L4BK/ BW | ||||||
Scale: | Black/ gray |
||||||
Class: |
|
1. Aluminum 6061 with CNC machine precisely.
Attached special oil passage design and high strength connecting bolt to make brake force performance better.
2. Surface with CNC machine cutting pattern getting attractive.
3. Bleeder & Brake pad pin with material stainless 304, not easy to get rusty and weather resistance.
4. Piston with aluminum 7075, surface with machine precisely and special hard anodized treatment for longer using without abrasion.
5. Aluminum 7075 piston size 34mm and 30mm attaching to make brake performance curve gradually.
Center bore 40mm, caliper bolt M10x1.5, banjo bolt M10x1.0.
6. Upgrade Advanced Composite Brake Pad, offer steady braking performance within normal temperature ~400°C;
high temperature resistance up to 600~800°C.
Material qualified for the worldwide environmental regulation, GG
